Simulation Study - Supplementary Results (BCV plots)
Pedro L. Baldoni
27 August, 2025
Last updated: 2025-08-27
Checks: 7 0
Knit directory: DTU-code/analysis/
This reproducible R Markdown analysis was created with workflowr (version 1.7.1). The Checks tab describes the reproducibility checks that were applied when the results were created. The Past versions tab lists the development history.
Great! Since the R Markdown file has been committed to the Git repository, you know the exact version of the code that produced these results.
Great job! The global environment was empty. Objects defined in the global environment can affect the analysis in your R Markdown file in unknown ways. For reproduciblity it’s best to always run the code in an empty environment.
The command set.seed(20240501) was run prior to running
the code in the R Markdown file. Setting a seed ensures that any results
that rely on randomness, e.g. subsampling or permutations, are
reproducible.
Great job! Recording the operating system, R version, and package versions is critical for reproducibility.
Nice! There were no cached chunks for this analysis, so you can be confident that you successfully produced the results during this run.
Great job! Using relative paths to the files within your workflowr project makes it easier to run your code on other machines.
Great! You are using Git for version control. Tracking code development and connecting the code version to the results is critical for reproducibility.
The results in this page were generated with repository version 5951235. See the Past versions tab to see a history of the changes made to the R Markdown and HTML files.
Note that you need to be careful to ensure that all relevant files for
the analysis have been committed to Git prior to generating the results
(you can use wflow_publish or
wflow_git_commit). workflowr only checks the R Markdown
file, but you know if there are other scripts or data files that it
depends on. Below is the status of the Git repository when the results
were generated:
Ignored files:
Ignored: .Rhistory
Ignored: .Rproj.user/
Ignored: .gitignore
Ignored: .renvignore
Ignored: DTU-code.Rproj
Ignored: code/.RData
Ignored: code/mouse/data/slurm-16691239.out
Ignored: code/mouse/salmon-index/slurm-16693056.out
Ignored: code/mouse/salmon/slurm-16693640.out
Ignored: code/mouse/subread-index/.RData
Ignored: code/mouse/subread-index/buildindex.Rout
Ignored: code/mouse/subread-index/slurm-19350188.out
Ignored: code/mouse/subread/.nextflow.log
Ignored: code/mouse/subread/.nextflow/
Ignored: code/mouse/subread/log/
Ignored: code/mouse/subread/report.html
Ignored: code/mouse/subread/slurm-19356012.out
Ignored: code/mouse/subread/timeline.html
Ignored: code/mouse/subread/trace-20241127-50139746.txt
Ignored: code/pkg/.Rbuildignore
Ignored: code/pkg/.Rhistory
Ignored: code/pkg/.Rproj.user/
Ignored: code/pkg/src/.gitignore
Ignored: code/pkg/src/RcppExports.o
Ignored: code/pkg/src/pkg.so
Ignored: code/pkg/src/rcpparma_hello_world.o
Ignored: code/simulation-no-trend/
Ignored: data/annotation/mm39/GRCm39.genome.fa.gz
Ignored: data/annotation/mm39/gencode.vM35.annotation.gtf.gz
Ignored: data/annotation/mm39/gencode.vM35.metadata.EntrezGene.gz
Ignored: data/annotation/mm39/gencode.vM35.transcripts.fa.gz
Ignored: data/mouse/fastq/
Ignored: ignore/
Ignored: output/mouse/
Ignored: output/simulation-lenient/
Ignored: output/simulation-no-trend/
Ignored: renv/
Untracked files:
Untracked: code/simulation-lenient-no-trend/
Untracked: misc/main-casestudy.Rmd/
Untracked: misc/main-simulation.Rmd/
Untracked: misc/supp-bcv.Rmd/
Untracked: misc/supp-simulation-dividedcounts.Rmd/
Untracked: misc/supp-simulation-lenient.Rmd/
Untracked: misc/supp-simulation-rawcounts.Rmd/
Untracked: output/old-simulation-lenient/
Untracked: output/old-simulation/
Untracked: output/simulation-lenient-no-trend/
Untracked: output/simulation/
Unstaged changes:
Deleted: analysis/about.Rmd
Deleted: analysis/mouse.Rmd
Deleted: analysis/simulation-lenient-supp.Rmd
Deleted: analysis/simulation-paper.Rmd
Deleted: analysis/simulation-supp.Rmd
Modified: code/pkg/R/simulation-summary.R
Modified: code/pkg/R/simulation.R
Deleted: code/readme.txt
Deleted: code/simulation-lenient/main.R
Deleted: code/simulation-lenient/parameters.R
Deleted: code/simulation-lenient/parameters.txt
Deleted: code/simulation-lenient/readme.txt
Deleted: code/simulation-lenient/run.sh
Deleted: code/simulation-lenient/summarize.R
Deleted: code/simulation/main.R
Deleted: code/simulation/parameters.R
Deleted: code/simulation/parameters.txt
Deleted: code/simulation/readme.txt
Deleted: code/simulation/run.sh
Deleted: code/simulation/summarize.R
Deleted: misc/mouse.Rmd/Figure-CaseStudy.pdf
Deleted: misc/simulation-lenient-supp.Rmd/SuppTable-Filtering-Gene.tex
Deleted: misc/simulation-lenient-supp.Rmd/SuppTable-Filtering-Transcript.tex
Deleted: misc/simulation-paper.Rmd/Figure-FDR.pdf
Deleted: misc/simulation-paper.Rmd/Figure-Power.pdf
Deleted: misc/simulation-paper.Rmd/Figure-Pval.pdf
Deleted: misc/simulation-paper.Rmd/Figure-Time.pdf
Deleted: misc/simulation-supp.Rmd/SuppFigure-ErrorRate.pdf
Deleted: misc/simulation-supp.Rmd/SuppFigure-FDR.pdf
Deleted: misc/simulation-supp.Rmd/SuppFigure-FP-SecondaryTranscripts-Unbalanced.pdf
Deleted: misc/simulation-supp.Rmd/SuppFigure-Power.pdf
Deleted: misc/simulation-supp.Rmd/SuppFigure-Pval-Gene-Unbalanced.pdf
Deleted: misc/simulation-supp.Rmd/SuppFigure-Pval-Transcript-Unbalanced.pdf
Deleted: misc/simulation-supp.Rmd/SuppFigure-ROC.pdf
Note that any generated files, e.g. HTML, png, CSS, etc., are not included in this status report because it is ok for generated content to have uncommitted changes.
These are the previous versions of the repository in which changes were
made to the R Markdown (analysis/supp-bcv.Rmd) and HTML
(docs/supp-bcv.html) files. If you’ve configured a remote
Git repository (see ?wflow_git_remote), click on the
hyperlinks in the table below to view the files as they were in that
past version.
| File | Version | Author | Date | Message |
|---|---|---|---|---|
| Rmd | 5951235 | Pedro Baldoni | 2025-08-27 | DTU paper revision |
Introduction
Setup
knitr::opts_chunk$set(dev = "png",
dpi = 300,
dev.args = list(type = "cairo-png"),
root.dir = '.',
autodep = TRUE)
options(knitr.kable.NA = "-")library(edgeR)
library(data.table)
library(patchwork)
library(ggplot2)path.misc <- file.path('../misc/supp-bcv.Rmd')
dir.create(path.misc,recursive = TRUE,showWarnings = FALSE)bs <- 8foo.bcv <- function (y,
xlab = "Average log CPM",
ylab = "Biological coefficient of variation",
pch = 16, cex = 0.2,
col.common = "red",
col.trend = "blue",
col.tagwise = "black",
fontsize = 8, ...) {
if (!is(y, "DGEList"))
stop("y must be a DGEList.")
A <- y$AveLogCPM
if (is.null(A))
A <- aveLogCPM(y$counts, offset = getOffset(y))
disp <- getDispersion(y)
if (is.null(disp))
stop("No dispersions to plot")
if (attr(disp, "type") == "common")
disp <- rep_len(disp, length(A))
par(mar = c(3, 3, 0.5, 0.25),mgp = c(1.25,0.5,0))
plot(A, sqrt(disp), xlab = xlab, ylab = ylab, type = "n",
cex.lab = fontsize/12,
cex.axis = fontsize/12,
cex.main = fontsize/12,
...)
labels <- cols <- lty <- pt <- NULL
if (!is.null(y$tagwise.dispersion)) {
points(A, sqrt(y$tagwise.dispersion), pch = pch, cex = cex,
col = col.tagwise)
labels <- c(labels, "Tagwise")
cols <- c(cols, col.tagwise)
lty <- c(lty, -1)
pt <- c(pt, pch)
}
if (!is.null(y$common.dispersion)) {
abline(h = sqrt(y$common.dispersion), col = col.common,
lwd = 2)
labels <- c(labels, "Common")
cols <- c(cols, col.common)
lty <- c(lty, 1)
pt <- c(pt, -1)
}
if (!is.null(y$trended.dispersion)) {
o <- order(A)
lines(A[o], sqrt(y$trended.dispersion)[o], col = col.trend,
lwd = 2)
labels <- c(labels, "Trend")
cols <- c(cols, col.trend)
lty <- c(lty, 1)
pt <- c(pt, -1)
}
legend("topright", legend = labels, lty = lty, pch = pt,
pt.cex = cex, lwd = 2, col = cols,cex = fontsize/12)
}
plot.voom <- function(fit,fontsize = 8,...){
par(mar = c(3, 3, 0.5, 0.25),mgp = c(1.25,0.5,0))
plot(x = fit$voom.xy$x,
y = fit$voom.xy$y,
xlab = fit$voom.xy$xlab,
ylab = fit$voom.xy$ylab,
pch = fit$voom.xy$pch,
cex = fit$voom.xy$cex,
cex.lab = fontsize/12,
cex.axis = fontsize/12,
cex.main = fontsize/12,...)
lines(fit$voom.line,col="red",lty=1)
}Data loading
cs.5 <- catchSalmon(list.dirs('../output/simulation-no-trend/data/mm39/readlen-100/fc2/paired-end/unbalanced/5libsPerGroup/simulation-1/quant-salmon',recursive = FALSE))Reading ../output/simulation-no-trend/data/mm39/readlen-100/fc2/paired-end/unbalanced/5libsPerGroup/simulation-1/quant-salmon/groupA_rep1_R1, 147556 transcripts, 100 gibbs samples
Reading ../output/simulation-no-trend/data/mm39/readlen-100/fc2/paired-end/unbalanced/5libsPerGroup/simulation-1/quant-salmon/groupA_rep2_R1, 147556 transcripts, 100 gibbs samples
Reading ../output/simulation-no-trend/data/mm39/readlen-100/fc2/paired-end/unbalanced/5libsPerGroup/simulation-1/quant-salmon/groupA_rep3_R1, 147556 transcripts, 100 gibbs samples
Reading ../output/simulation-no-trend/data/mm39/readlen-100/fc2/paired-end/unbalanced/5libsPerGroup/simulation-1/quant-salmon/groupA_rep4_R1, 147556 transcripts, 100 gibbs samples
Reading ../output/simulation-no-trend/data/mm39/readlen-100/fc2/paired-end/unbalanced/5libsPerGroup/simulation-1/quant-salmon/groupA_rep5_R1, 147556 transcripts, 100 gibbs samples
Reading ../output/simulation-no-trend/data/mm39/readlen-100/fc2/paired-end/unbalanced/5libsPerGroup/simulation-1/quant-salmon/groupB_rep1_R1, 147556 transcripts, 100 gibbs samples
Reading ../output/simulation-no-trend/data/mm39/readlen-100/fc2/paired-end/unbalanced/5libsPerGroup/simulation-1/quant-salmon/groupB_rep2_R1, 147556 transcripts, 100 gibbs samples
Reading ../output/simulation-no-trend/data/mm39/readlen-100/fc2/paired-end/unbalanced/5libsPerGroup/simulation-1/quant-salmon/groupB_rep3_R1, 147556 transcripts, 100 gibbs samples
Reading ../output/simulation-no-trend/data/mm39/readlen-100/fc2/paired-end/unbalanced/5libsPerGroup/simulation-1/quant-salmon/groupB_rep4_R1, 147556 transcripts, 100 gibbs samples
Reading ../output/simulation-no-trend/data/mm39/readlen-100/fc2/paired-end/unbalanced/5libsPerGroup/simulation-1/quant-salmon/groupB_rep5_R1, 147556 transcripts, 100 gibbs samplescs.3 <- catchSalmon(list.dirs('../output/simulation-no-trend/data/mm39/readlen-100/fc2/paired-end/unbalanced/3libsPerGroup/simulation-1/quant-salmon',recursive = FALSE))Reading ../output/simulation-no-trend/data/mm39/readlen-100/fc2/paired-end/unbalanced/3libsPerGroup/simulation-1/quant-salmon/groupA_rep1_R1, 147556 transcripts, 100 gibbs samples
Reading ../output/simulation-no-trend/data/mm39/readlen-100/fc2/paired-end/unbalanced/3libsPerGroup/simulation-1/quant-salmon/groupA_rep2_R1, 147556 transcripts, 100 gibbs samples
Reading ../output/simulation-no-trend/data/mm39/readlen-100/fc2/paired-end/unbalanced/3libsPerGroup/simulation-1/quant-salmon/groupA_rep3_R1, 147556 transcripts, 100 gibbs samples
Reading ../output/simulation-no-trend/data/mm39/readlen-100/fc2/paired-end/unbalanced/3libsPerGroup/simulation-1/quant-salmon/groupB_rep1_R1, 147556 transcripts, 100 gibbs samples
Reading ../output/simulation-no-trend/data/mm39/readlen-100/fc2/paired-end/unbalanced/3libsPerGroup/simulation-1/quant-salmon/groupB_rep2_R1, 147556 transcripts, 100 gibbs samples
Reading ../output/simulation-no-trend/data/mm39/readlen-100/fc2/paired-end/unbalanced/3libsPerGroup/simulation-1/quant-salmon/groupB_rep3_R1, 147556 transcripts, 100 gibbs samplescs.real <- catchSalmon(list.dirs('../output/mouse/salmon',recursive = FALSE)[1:6])Reading ../output/mouse/salmon/GSM7106766, 147556 transcripts, 100 gibbs samples
Reading ../output/mouse/salmon/GSM7106767, 147556 transcripts, 100 gibbs samples
Reading ../output/mouse/salmon/GSM7106768, 147556 transcripts, 100 gibbs samples
Reading ../output/mouse/salmon/GSM7106769, 147556 transcripts, 100 gibbs samples
Reading ../output/mouse/salmon/GSM7106770, 147556 transcripts, 100 gibbs samples
Reading ../output/mouse/salmon/GSM7106771, 147556 transcripts, 100 gibbs samplesmin.count <- 10
min.total.count <- 15

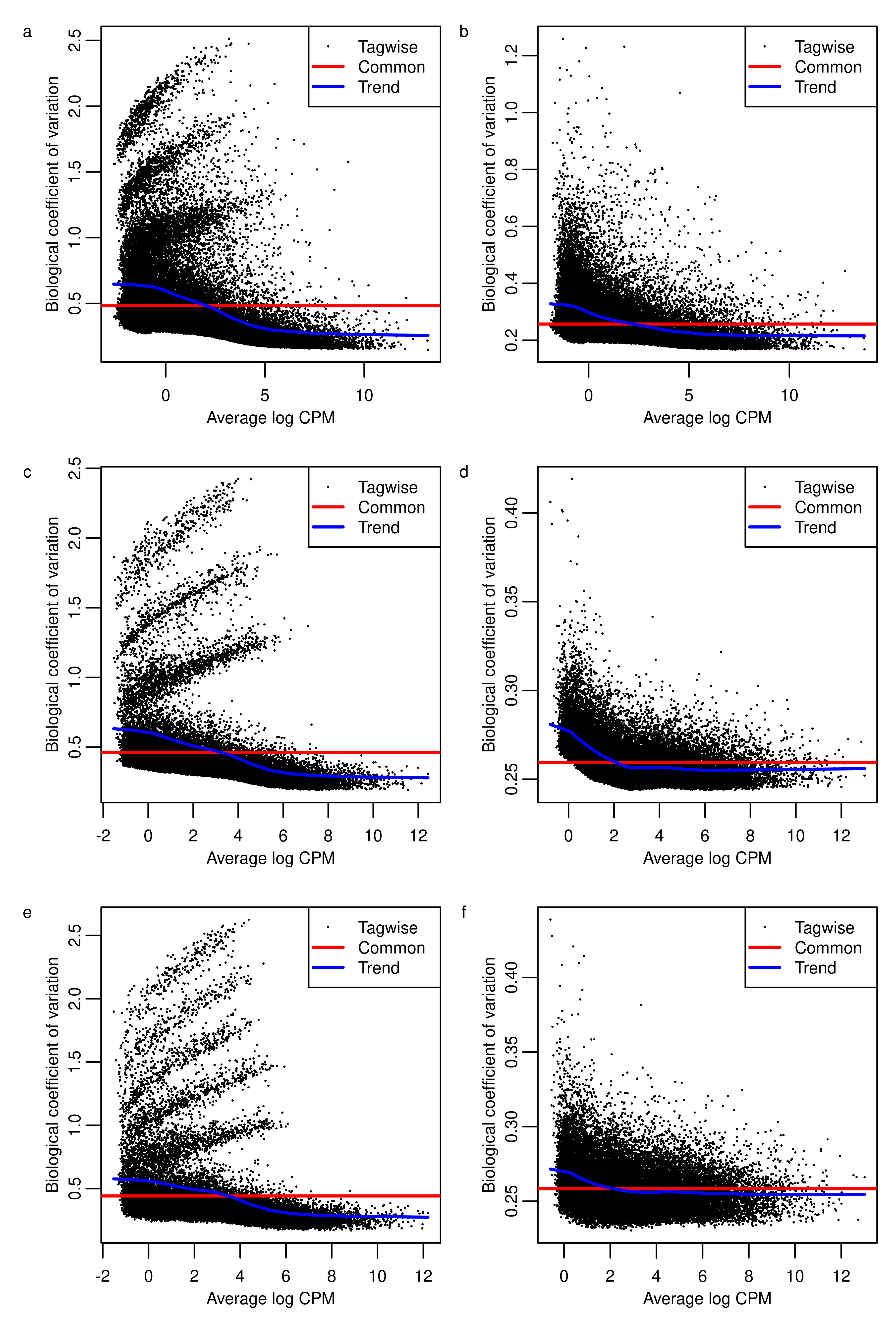

span = 0.40BCV plots
dge.3 <- DGEList(counts = cs.3$counts/cs.3$annotation$Overdispersion,group = gl(2,3),genes = cs.3$annotation)
rownames(dge.3) <- limma::strsplit2(rownames(dge.3),"\\|")[,1]
colnames(dge.3) <- basename(colnames(dge.3))
dge.3.raw <- DGEList(counts = cs.3$counts,group = gl(2,3))
rownames(dge.3.raw) <- limma::strsplit2(rownames(dge.3.raw),"\\|")[,1]
colnames(dge.3.raw) <- basename(colnames(dge.3.raw))
design.3 <- model.matrix(~0+group,dge.3$samples)
keep.3 <- filterByExpr(dge.3,min.count = min.count, min.total.count = min.total.count)
dge.3.filtr <- dge.3[keep.3,,keep.lib.sizes = FALSE]
dge.3.filtr <- normLibSizes(dge.3.filtr)
dge.3.filtr <- estimateDisp(dge.3.filtr,design = design.3,span = span)
keep.3.raw <- filterByExpr(dge.3.raw,min.count = min.count, min.total.count = min.total.count)
dge.3.raw.filtr <- dge.3.raw[keep.3.raw,,keep.lib.sizes = FALSE]
dge.3.raw.filtr <- normLibSizes(dge.3.raw.filtr)
dge.3.raw.filtr <- estimateDisp(dge.3.raw.filtr,design = design.3,span = span)
bcv.scaled.sim.3 <- wrap_elements(full = ~foo.bcv(dge.3.filtr))
bcv.raw.sim.3 <- wrap_elements(full = ~foo.bcv(dge.3.raw.filtr))dge.5 <- DGEList(counts = cs.5$counts/cs.5$annotation$Overdispersion,group = gl(2,5),genes = cs.5$annotation)
rownames(dge.5) <- limma::strsplit2(rownames(dge.5),"\\|")[,1]
colnames(dge.5) <- basename(colnames(dge.5))
dge.5.raw <- DGEList(counts = cs.5$counts,group = gl(2,5))
rownames(dge.5.raw) <- limma::strsplit2(rownames(dge.5.raw),"\\|")[,1]
colnames(dge.5.raw) <- basename(colnames(dge.5.raw))
design.5 <- model.matrix(~0+group,dge.5$samples)
keep.5 <- filterByExpr(dge.5,min.count = min.count, min.total.count = min.total.count)
dge.5.filtr <- dge.5[keep.5,,keep.lib.sizes = FALSE]
dge.5.filtr <- normLibSizes(dge.5.filtr)
dge.5.filtr <- estimateDisp(dge.5.filtr,design = design.5,span = span)
keep.5.raw <- filterByExpr(dge.5.raw,min.count = min.count, min.total.count = min.total.count)
dge.5.raw.filtr <- dge.5.raw[keep.5.raw,,keep.lib.sizes = FALSE]
dge.5.raw.filtr <- normLibSizes(dge.5.raw.filtr)
dge.5.raw.filtr <- estimateDisp(dge.5.raw.filtr,design = design.5,span = span)
bcv.scaled.sim.5 <- wrap_elements(full = ~foo.bcv(dge.5.filtr))
bcv.raw.sim.5 <- wrap_elements(full = ~foo.bcv(dge.5.raw.filtr))dge.real <- DGEList(counts = cs.real$counts/cs.real$annotation$Overdispersion,group = gl(2,3),genes = cs.real$annotation)
rownames(dge.real) <- limma::strsplit2(rownames(dge.real),"\\|")[,1]
design.real <- model.matrix(~0+group,dge.real$samples)
keep.real <- filterByExpr(dge.real,min.count = min.count, min.total.count = min.total.count)
dge.real.filtr <- dge.real[keep.real,,keep.lib.sizes = FALSE]
dge.real.filtr <- normLibSizes(dge.real.filtr)
dge.real.filtr <- estimateDisp(dge.real.filtr,design = design.real,span = span)
dge.real.raw <- DGEList(counts = cs.real$counts,group = gl(2,3))
keep.real.raw <- filterByExpr(dge.real.raw,min.count = min.count, min.total.count = min.total.count)
dge.real.raw.filtr <- dge.real.raw[keep.real.raw,,keep.lib.sizes = FALSE]
dge.real.raw.filtr <- normLibSizes(dge.real.raw.filtr)
dge.real.raw.filtr <- estimateDisp(dge.real.raw.filtr,design = design.real,span = span)
bcv.scaled.real <- wrap_elements(full = ~foo.bcv(dge.real.filtr,fontsize = bs))
bcv.raw.real <- wrap_elements(full = ~foo.bcv(dge.real.raw.filtr,fontsize = bs))fig.edgeR <- wrap_plots(A = bcv.raw.real,
B = bcv.scaled.real,
C = bcv.raw.sim.3,
D = bcv.scaled.sim.3,
E = bcv.raw.sim.5,
`F` = bcv.scaled.sim.5,
design = c(area(1,1),area(1,2),
area(2,1),area(2,2),
area(3,1),area(3,2))) +
plot_annotation(tag_levels = 'a') &
theme(plot.tag = element_text(size = bs))
fig.edgeR
Output files
ggsave(plot = fig.edgeR,
filename = file.path(path.misc,'SuppFigure-BCVPlots.png'),
device = 'png',width = 6,height = 9,units = 'in',dpi = 300)
sessionInfo()R version 4.4.1 (2024-06-14)
Platform: x86_64-pc-linux-gnu
Running under: Red Hat Enterprise Linux 9.3 (Plow)
Matrix products: default
BLAS: /stornext/System/data/software/rhel/9/base/tools/R/4.4.1/lib64/R/lib/libRblas.so
LAPACK: /stornext/System/data/software/rhel/9/base/tools/R/4.4.1/lib64/R/lib/libRlapack.so; LAPACK version 3.12.0
locale:
[1] LC_CTYPE=en_US.UTF-8 LC_NUMERIC=C
[3] LC_TIME=en_US.UTF-8 LC_COLLATE=en_US.UTF-8
[5] LC_MONETARY=en_US.UTF-8 LC_MESSAGES=en_US.UTF-8
[7] LC_PAPER=en_US.UTF-8 LC_NAME=C
[9] LC_ADDRESS=C LC_TELEPHONE=C
[11] LC_MEASUREMENT=en_US.UTF-8 LC_IDENTIFICATION=C
time zone: Australia/Melbourne
tzcode source: system (glibc)
attached base packages:
[1] stats graphics grDevices datasets utils methods base
other attached packages:
[1] ggplot2_3.5.1 patchwork_1.3.0 data.table_1.17.0 edgeR_4.5.9
[5] limma_3.63.9 workflowr_1.7.1
loaded via a namespace (and not attached):
[1] gtable_0.3.6 xfun_0.51 bslib_0.9.0
[4] processx_3.8.6 lattice_0.22-6 callr_3.7.6
[7] tzdb_0.4.0 vctrs_0.6.5 tools_4.4.1
[10] ps_1.9.0 generics_0.1.3 parallel_4.4.1
[13] tibble_3.2.1 pkgconfig_2.0.3 lifecycle_1.0.4
[16] compiler_4.4.1 farver_2.1.2 stringr_1.5.1
[19] git2r_0.35.0 textshaping_1.0.0 statmod_1.5.0
[22] munsell_0.5.1 getPass_0.2-4 httpuv_1.6.15
[25] htmltools_0.5.8.1 sass_0.4.9 yaml_2.3.10
[28] later_1.4.1 pillar_1.10.1 crayon_1.5.3
[31] jquerylib_0.1.4 whisker_0.4.1 cachem_1.1.0
[34] tidyselect_1.2.1 locfit_1.5-9.12 digest_0.6.37
[37] stringi_1.8.4 dplyr_1.1.4 splines_4.4.1
[40] rprojroot_2.0.4 fastmap_1.2.0 grid_4.4.1
[43] colorspace_2.1-1 cli_3.6.4 magrittr_2.0.3
[46] readr_2.1.5 withr_3.0.2 scales_1.3.0
[49] promises_1.3.2 bit64_4.6.0-1 rmarkdown_2.29
[52] httr_1.4.7 bit_4.6.0 ragg_1.3.3
[55] hms_1.1.3 evaluate_1.0.3 knitr_1.49
[58] gridGraphics_0.5-1 rlang_1.1.5 Rcpp_1.0.14
[61] glue_1.8.0 BiocManager_1.30.25 renv_1.1.2
[64] rstudioapi_0.17.1 vroom_1.6.5 jsonlite_1.9.1
[67] R6_2.6.1 systemfonts_1.2.1 fs_1.6.5
